Description

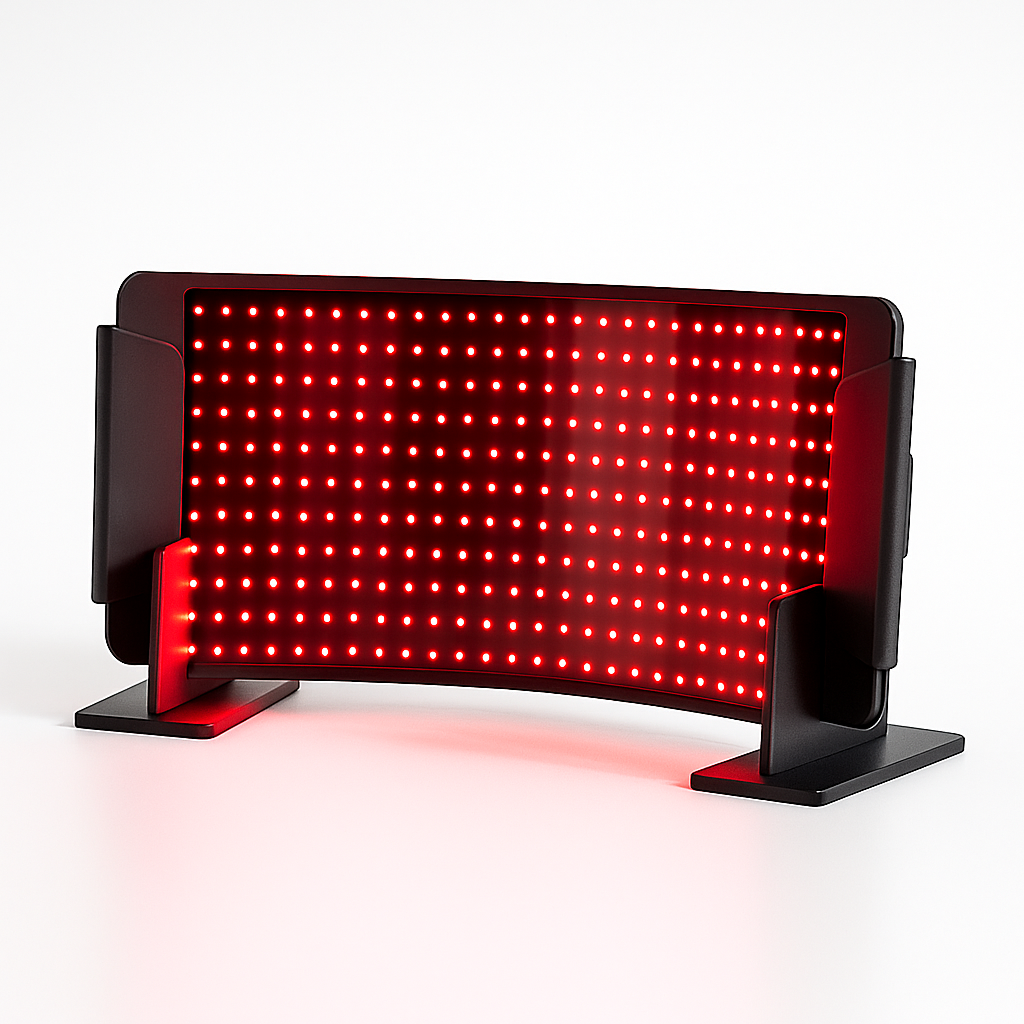

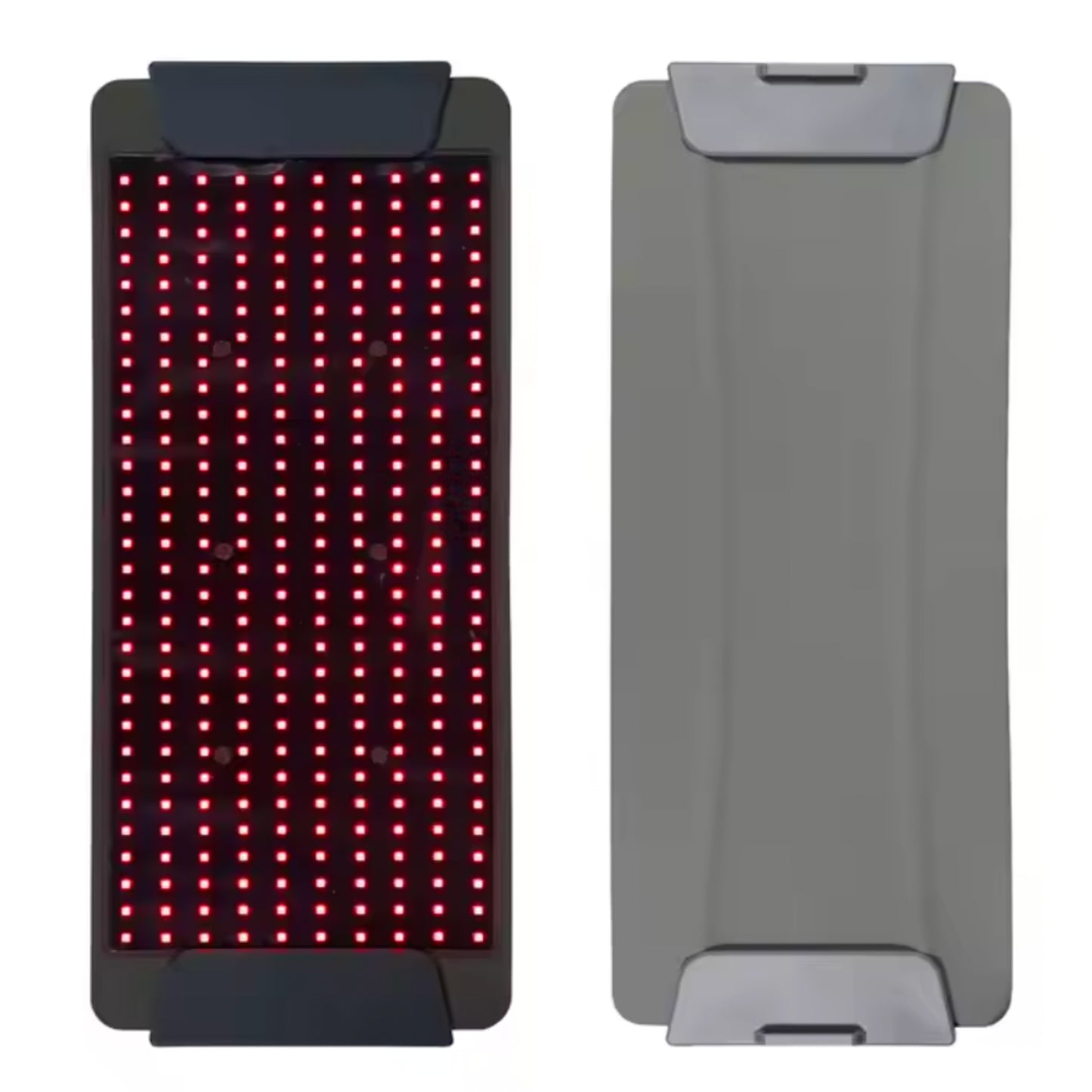

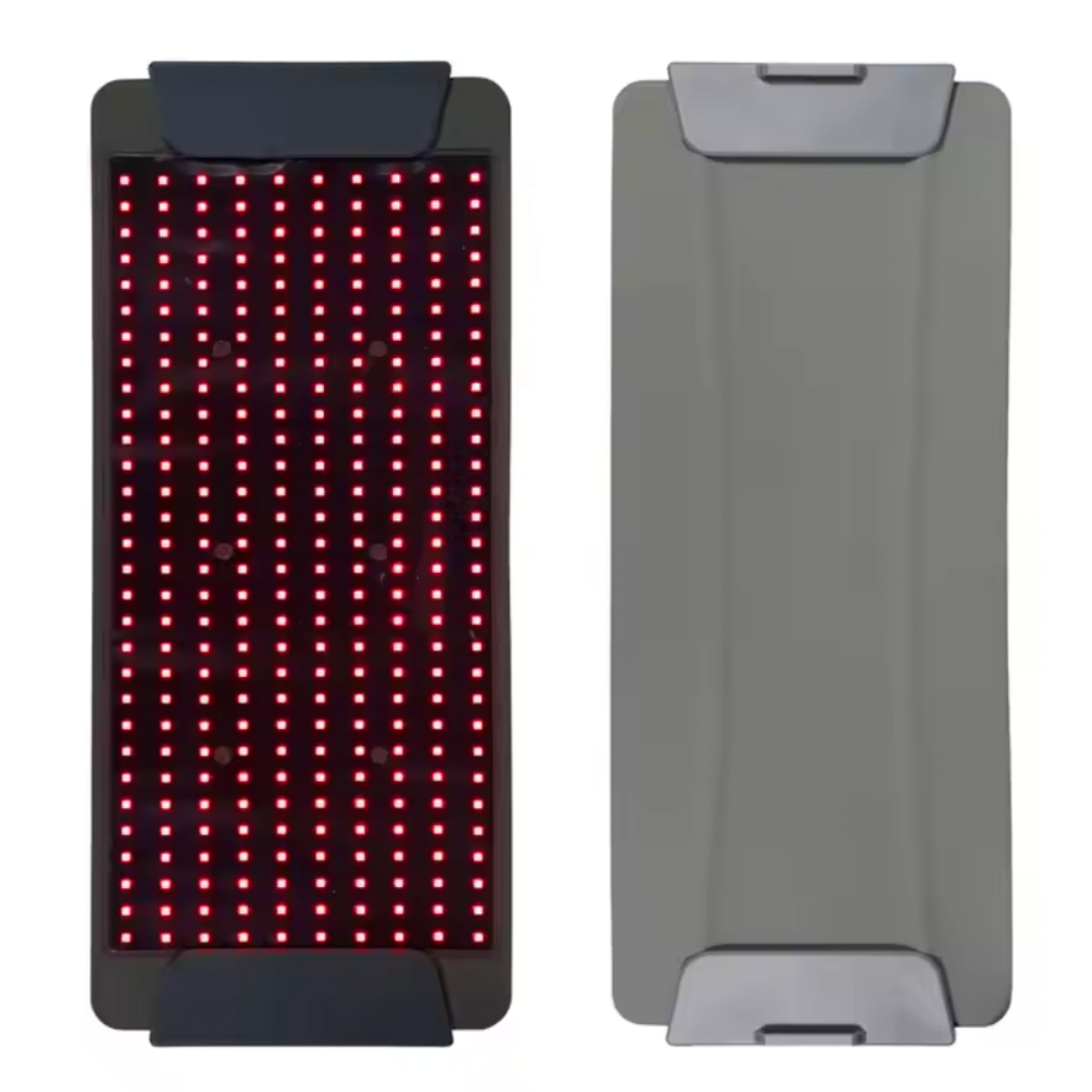

HelioCurve Elite Red/NIR Therapy Panel
The HelioCurve Elite Red/NIR Therapy Panel is a premium, curved light therapy device engineered for full-face and upper-body coverage. Its arced design concentrates clinically-relevant wavelengths with uniform intensity, while side shields and weighted desktop stands keep sessions comfortable and hands-free. Built for longevity with an aluminum chassis and optical-grade lensing, it delivers spa-level results at home or in professional studios.
Specifications
-
Material: Anodized aluminum housing, optical-grade polycarbonate lens, silicone edge guards
-
Dimensions: 62 cm (W) x 9 cm (D) x 37 cm (H); 20° curved arc
-
Wavelengths: 630 nm & 660 nm (Red), 810 nm, 830 nm & 850 nm (Near-Infrared)
-
Irradiance: 110 mW/cm² at 15 cm; 30° beam angle
-
Power & LEDs: 432 high-output diodes; 260 W max draw; flicker-free driver
Features
-
Curved, Wide-Coverage Panel: Wraparound design boosts uniformity and reduces hot spots
-
Dual-Spectrum Output: Independent Red/NIR control for targeted or combined sessions
-
Pro-Grade Cooling: Ultra-quiet active cooling for stable output and long life
-
Low EMF & Flicker-Free: Medical-grade driver minimizes flicker and electromagnetic output
-
Smart Controls: Capacitive touch panel, 1–20 min timer, session memory, auto shut-off
-
Stable Desktop Stands: Weighted bases and side shields for safe, comfortable positioning
Maintenance
-
Daily: Power down and wipe the lens and side shields with a microfiber cloth
-
Weekly: Vacuum cooling vents and check stand screws for tightness
-
Annually: Inspect power cable and replace the safety fuse if needed
